Accessory Product
DC Power Cables
Turn-key high voltage and high current DC power cables
Utilizing state-of-the-art cable fabrication equipment, Magna-Power manufactured DC power cables provide a turn-key cost-effective wiring solution for DC applications, with a wide range of voltage and current ratings available.
Magna-Power offers a variety of DC power cables, built and tested in-house utilizing Magna-Power’s exacting internal cable manufacturing operations. Offered with a variety of terminations to mate with Magna-Power supplies, the DC power cables provide a flexible, turn-key solution to high-power cabling. High-current connections can be greatly simplified using Magna-Power's low impedance 1 kA flexible cables; a solution that Magna-Power uses in its own production for high-current test, burn-in and calibration.
Key Features
- Max current ratings from 3.3 to 1000 Adc per cable
- Max voltage ratings from 600 Vdc to 20 kV
- Designed to mate with Magna-Power DC bus bars
- Flexible termination and termination sleeving color coding options
- Lengths from 5 feet to 300 feet
Talk with an expert
Magna-Power manufactured cables
Cable specifications and configurations
Ratings and available terminations
The following table provides availability of cable ratings and terminations:

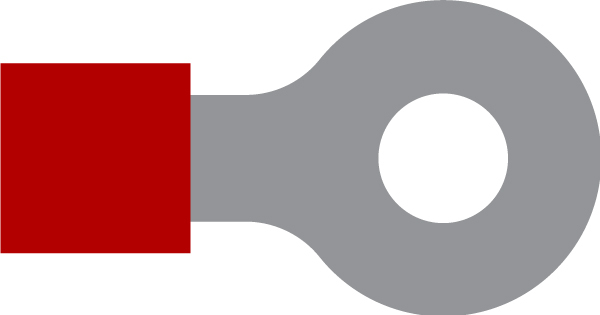

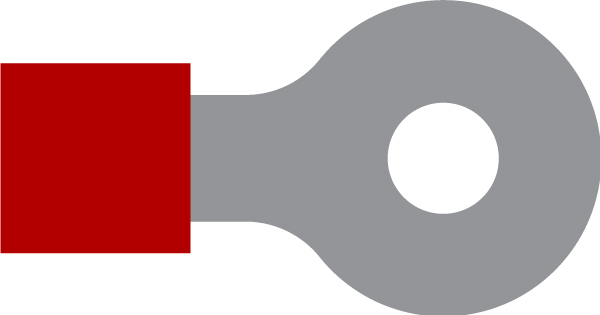

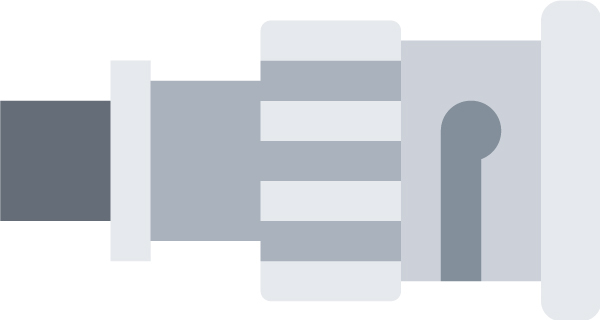

| Base Model | Max Voltage | Max Current | Available Terminations |
Max Conductor Temperature |
Operating Exterior Sleeving Protection |
Nominal Outer Diameter | Number of Strands | Jacket Type | Abrasion Resistance | Additional Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| CBL-20000-3.3 | 20000 | 3.3 | T1, T5 | 90ºC | -40°C to +75°C | 0.403" (10.23 mm) | N/A | Polyvinyl Chloride (PVC) | N/A | |
| CBL-15000-55 | 15000 | 55 | T0, T1, T2, T3 | 90ºC | -40ºC to +150ºC | 0.260" (6.60 mm) | 133 | Silicone Rubber | Not available | |
| CBL-600-100 | 600 | 100 | T0, T1, T2, T3 | 90ºC | -40ºC to +90ºC | 0.495" (12.57 mm) | 778 | Ethylene Propylene Diene Monomer Rubber (EPDM) |
Not available | |
| CBL-6000-100 | 6000 | 100 | T0, T1, T2, T3 | 90ºC | -40ºC to +155ºC | 0.768" (19.50 mm) | 778 | Acrylic Coated Braided Fiberglass | 2500 cycles (SAE ARP 1 536) |
|
| CBL-600-160 | 600 | 160 | T0, T1, T2, T3 | 90ºC | -40ºC to +90ºC | 0.560" (14.22 mm) | 990 | Ethylene Propylene Diene Monomer Rubber (EPDM) |
Not available | |
| CBL-6000-160 | 6000 | 160 | T0, T1, T2, T3 | 90ºC | -40ºC to +155ºC | 0.768" (19.50 mm) | 990 | Acrylic Coated Braided Fiberglass | 2500 cycles (SAE ARP 1 536) |
|
| CBL-600-223 | 600 | 223 | T0, T1, T2, T3 | 90ºC | -40ºC to +90ºC | 0.615" (15.62 mm) | 1248 | Ethylene Propylene Diene Monomer Rubber (EPDM) |
Not available | |
| CBL-6000-223 | 6000 | 223 | T0, T1, T2, T3 | 90ºC | -40ºC to +155ºC | 1.018" (25.86 mm) | 1248 | Acrylic Coated Braided Fiberglass | 2500 cycles (SAE ARP 1 536) |
|
| CBL-600-310 | 600 | 310 | T0, T1, T2, T3 | 90ºC | -40ºC to +90ºC | 0.750" (19.05 mm) | 2054 | Ethylene Propylene Diene Monomer Rubber (EPDM) |
Not available | |
| CBL-6000-310 | 6000 | 310 | T0, T1, T2, T3 | 90ºC | -40ºC to +155ºC | 1.018" (25.86 mm) | 2054 | Acrylic Coated Braided Fiberglass | 2500 cycles (SAE ARP 1 536) |
|
| CBL-6000-1250 | 6000 | 1250 | T4 | 90ºC | -40ºC to +155ºC | 1.250" (31.75 mm) | 6162 | Acrylic Coated Braided Fiberglass | 2500 cycles (SAE ARP 1 536) |
Cable: 0.020 mΩ/ft T4 Lug: 0.007 mΩ ea |
